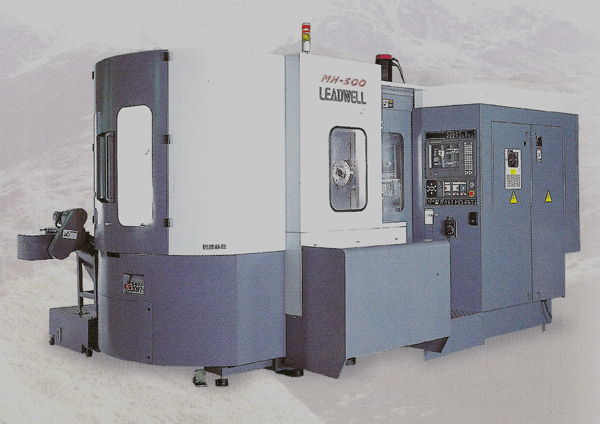

MH-500 |
| Capacity |
¡@ |
¡@ |
| X-axis travel |
mm(in) |
750(29.5) |
| Y-axis travel |
mm(in) |
650(25.5) |
| Z-axis travel |
mm(in) |
700(27.5) |
| Distance from table top to spindle center |
mm(in) |
75-725(3-28.5) |
| Distance from table center to spindle end |
mm(in) |
150-850(5.9-33.4) |
| Table(pallet) |
¡@ |
¡@ |
| Table size |
mm(in) |
500x500(19.6) |
| Working surface (height * width) |
mm(in) |
710x800(27.9x31.5) |
| Permissible mass of workpiece |
kg(lb) |
500(1100) |
| Min. table indexing angle |
deg |
0.001 |
| Spindle |
¡@ |
¡@ |
| Spindle speeds |
min |
4000 |
| Spindle nose (normal size, NO.) |
¡@ |
7/24 Taper.No50 |
| Spindle bearing inner diameter |
mm(in) |
90(3.5) |
| Feedrate |
¡@ |
¡@ |
| X,Y,Z Rapid traverse |
m/min(in) |
20(787.5) |
| Feedrate |
m/min(in) |
5(196.8) |
| A.T.C |
¡@ |
¡@ |
| Tool storage capacity |
¡@ |
40 |
| Max. tool diameter (with adjacent tools) |
mm(in) |
125(5) |
| Max. tool length |
mm(in) |
350(13.7) |
| Tool change time (T-T/C-C) |
sec |
8/13 |
| A.P.C |
¡@ |
¡@ |
| Number of pallets |
¡@ |
2 |
| Pallet changing time |
sec |
12 |
| Motors |
¡@ |
¡@ |
| Spindle motor (30min/cont) |
FANUC kw(HP) |
15(20.1) |
| X,Y/Z-axis feed motors |
kw |
2.1(2.8)/3.8(5) |
| Machine size |
¡@ |
¡@ |
| Height of machine |
mm(in) |
2820(111) |
| Floor space |
mm(in) |
6230x3600(245.3x141.7) |
| Total machine weight |
kg(lb) |
15000(33000) |
| Power requirement |
KVA |
50 |
