Rapid High Temperature High Pressure Yarn Dyeing Machine

Dyeing units offer following advantages

1.SAVING ENERGY AND RESOURCES

Low liquor system saves process water, cooling water, steam, chemicals, dyestuffs and electric power. About 30 min from 25C up to 140C, about 20 min from 140C down to 80C.

2.WIDE APPLICATION

This is a universal application machine which may accomplish various treatments such as bleaching dying and scouring etc.

3.SPECIAL PUMP

Special designed pump is centrifugal type, high head and large flow rate.

4.EASY AND SAFE OPERATION

Door opening and closing all use automatic air-cylinder operation. Temperature and time can be set optionally by electric control panel. Auto or semi-auto can be chosen optionally. Easy for operation.

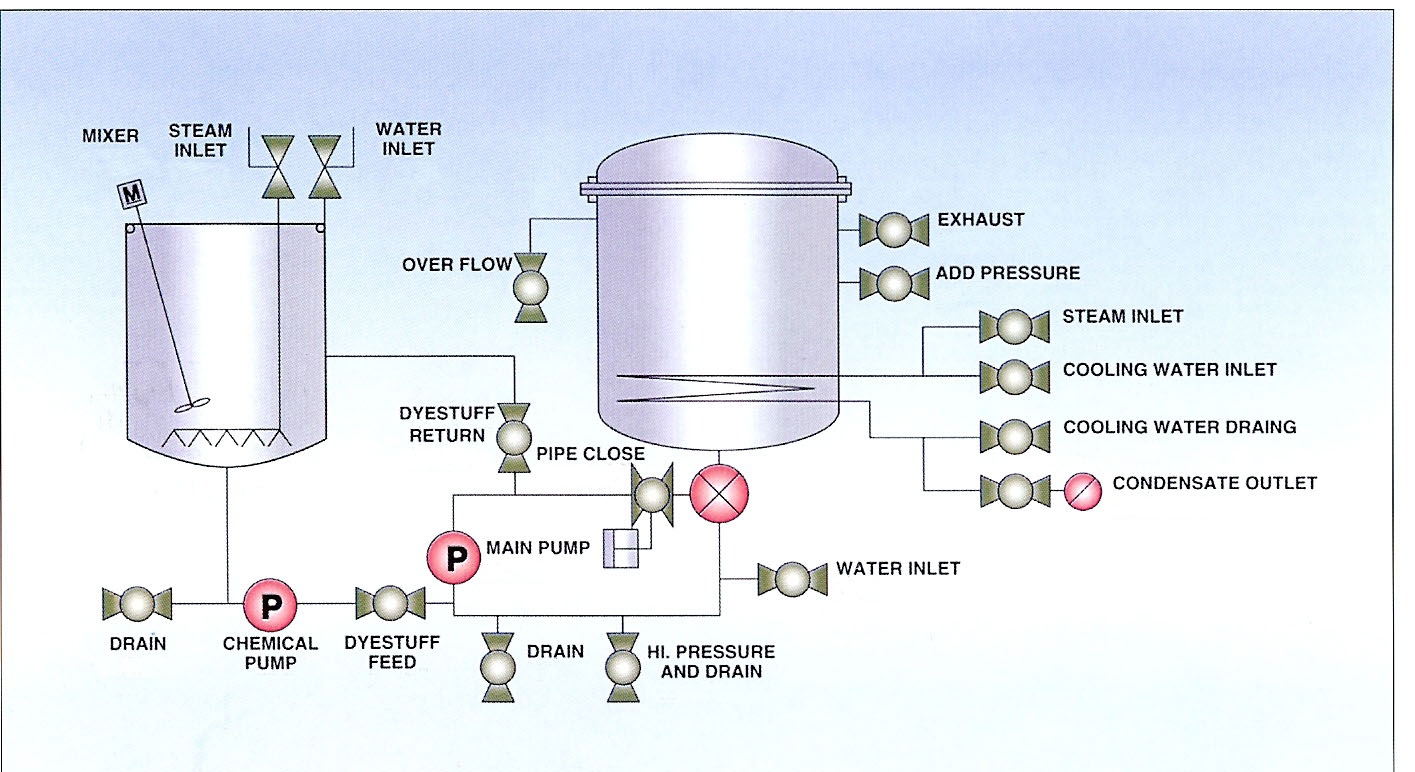

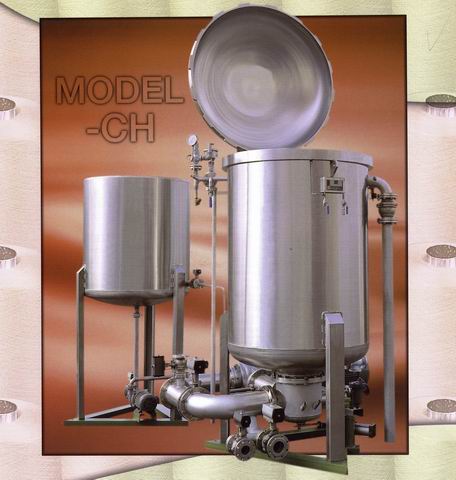

TGCH type cheese dyeing machine is a pneumatically controlled, high temperature, high pressure dyeing machine, it can be used with a wide variety of fibers (natural, synthetic, polyester etc.) at low liquor ratios.

SPECIFICATION

Item \ Model TGCH-10 TGCH-30 TGCH-50 TGCH-100 TGCH-200 TGCH-300 TGCH-400 TGCH-600 TGCH-1000
Max. Temp 140 140 140 140 140 140 140 140 140
Max Pressure kg/cm^2 4 4 4 4 4 4 4 4 4
Capacity kg

Cheese

10 30 50 100 200 300 400 600 1000

Hank

8 25 40 80 160 240 320 480 800
Volume Lit 100 300 500 1000 2000 3000 4000 6000 10000
Main Pump Motor HP 7.5 10 15 25 40 60 75 125 200
Steam Kg/cycle 23 68 113 227 454 680 907 1361 2268
Cooling Water lit/cycle 100 300 600 1200 2400 3600 4800 7200 12000

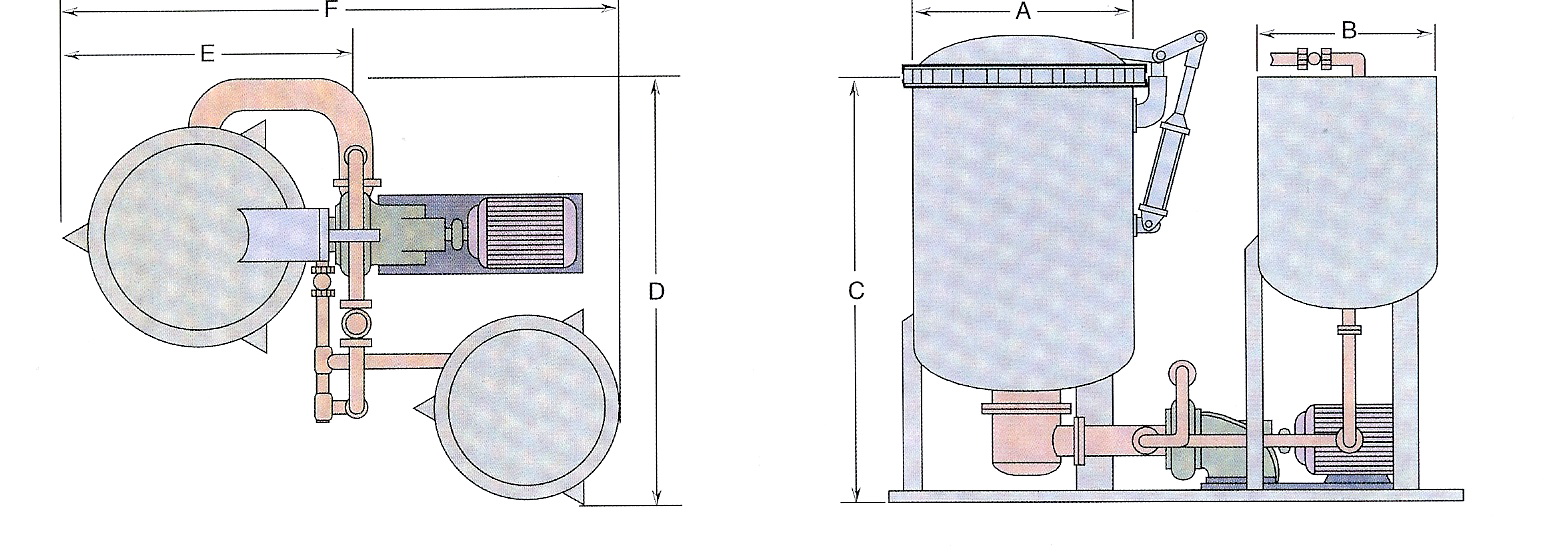

SPACE REQUIRED

Model A B C D E F
TGCH-10 457 635 2735 1856 500 2896
TGCH-30 589 635 2735 1618 570 2984
TGCH-50 770 779 2735 2684 1000 3146
TGCH-100 970 779 2735 2747 1044 3292
TGCH-200 1362 1204 2735 3207 1300 3754
TGCH-300 1572 1375 2785 3350 1300 3940
TGCH-400 1662 1357 2785 3174 1400 3975
TGCH-600 1572 1357 4355 3808 1452 4089
TGCH-1000 1872 1375 5150 3935 1800 4113

                                                                                                                      UNIT:mm

@
