  Models & Specifications of Our Circular Knitting Machines

¡@ Model Cylinder dia. Gauge Feeder Power RPM
Open Width Single Jersey 4 Tracks Serials JS3.2 26"~42" 15G~40G 84F~132F 7.5HP 15~30
JS4 26"~42" 15G~36G 84F~168F 7.5HP 15~28
Single Jersey  4 Tracks Serials S3.2 26"~30" 15G~40G 84F~96F 5.6HP 20~32
S3.2 32"~42" 15G~40G 102F~132F 7.5HP 20~32
S4 26"~30" 15G~36G 104F~120F 5.6HP 20~32
S4 32"~42" 15G~36G 128F~168F 7.5HP 20~32
Body Size Single Jersey 4 Tracks Serials S3 16"~24" 15G~36G 48F~72F 5.4HP 20~35
S4 16"~24" 15G~36G 64F~96F 5.4HP 20~30
Multi-Feeders Single  Jersey 2 Tracks Serials S5 30"~42" 15G~30G 158F~220F 7.5HP 10~18
Thick Thread Single Jersey 4 Tracks Serials S2.4 30"~42"" 6G~12G 72F~100F 7.5HP 10~25
3-Yarn Fleece Jersey 3 Tracks Serials F3.2 26"~30" 16G~24G 84F~96F 5.6HP 20~30
F3.2 32"~42" 16G~24G 102F~132F 7.5HP 20~30
F3.2 30"~42" 26G~30G 96F~132F 7.5HP 20~25
Double Jersey Serials D2x2 30"~42" 16G~28G 84F~116F 7.5HP 15~28
D2x4 30"~42" 16G~28G 72F~102F 7.5HP 15~28
D4x4 30"~42" 16G~28G 64F~90F 7.5HP 15~28
D2x2 30"~42" 30G~44G 72F~102F 7.5HP 10~18
Open Width Double Jersey Serials JD2x2 30"~42" 16G~28G 84F~116F 7.5HP 15~25
JD2x4 30"~42" 16G~28G 72F~102F 7.5HP 15~25
JD4x4 30"~42" 16G~28G 64F~90F 7.5HP 15~25
JD2x2 30"~42" 30G~44G 72F~102F 7.5HP 15~25
Polar Fleece Serials T2 26"~42" 16G~24G 52F~84F 5.6HP 20~28
V2 26"~42" 16G~30G 42F~66F 7.5HP 15~22
Rib Serials R1x1 30" 16G~22G 48F 5.6HP 18~30
R1x1 32"~42" 16G~22G 50F~68F 7.5HP 18~30
R2x2 30"~42" 16G~22G 72F~102F 7.5HP 15~25

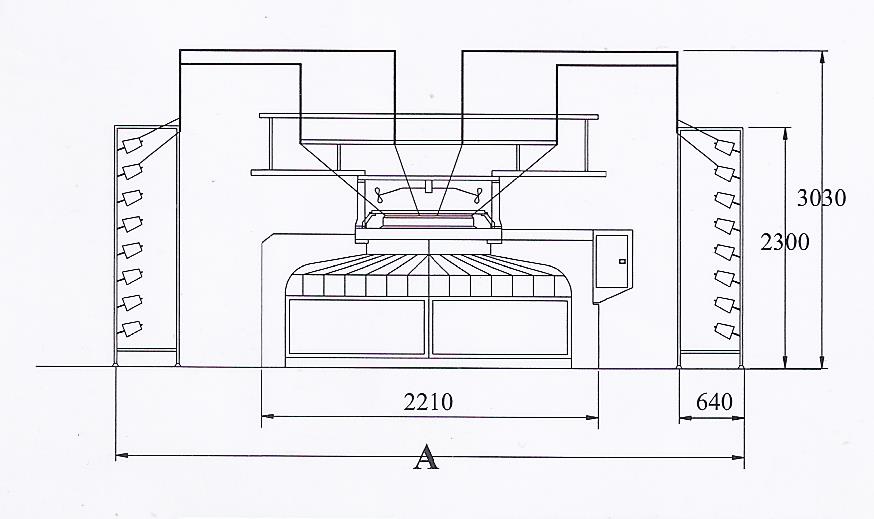

Machine space dimension for open width:

Cylinder Dia. A
26"~34" 6500 mm
36"~42" 7000 mm

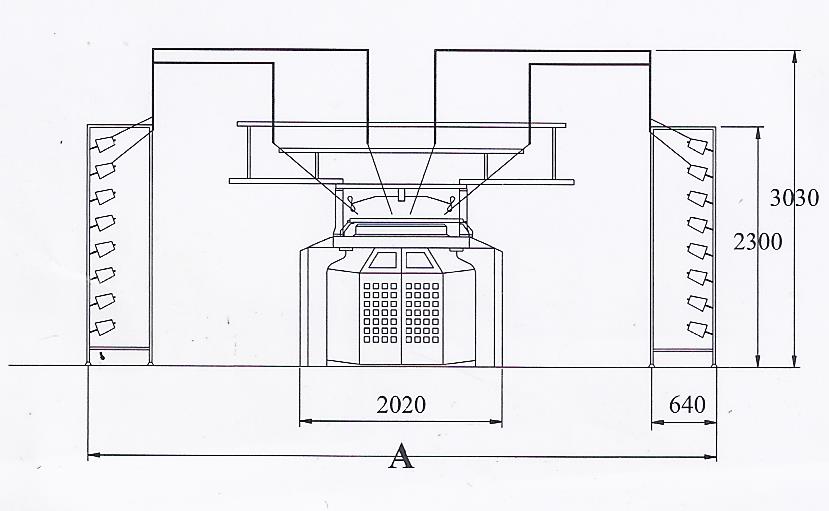

Machine space dimension for others:

Cylinder Dia. A
16"~42"(w/Lycra kits) 6000 mm
16"~42"(w/o Lycra kits) 5000 mm

¡@

¡@

¡@

¡@
