Controller

Power supply:

1.  Electric wire rope hoist suits majority of the 3-Phase power in different countries, available in 50Hz or 60Hz, voltage from 220V up to 600V.

2.  Dual-volt hoist subject to our confirmation.

Lifting height:

1.  Standard lifting height: Please refer to specifications.

2.  Optional height available upon request.

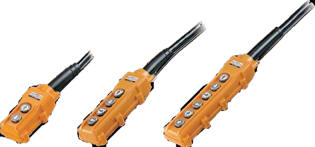

Push button switch:

1.  2-point type: up and down.

2.  4-point type: up and down；left and right (trolley).

3.  6-point type: up and down；left and right；forward and reverse (end carrier)
