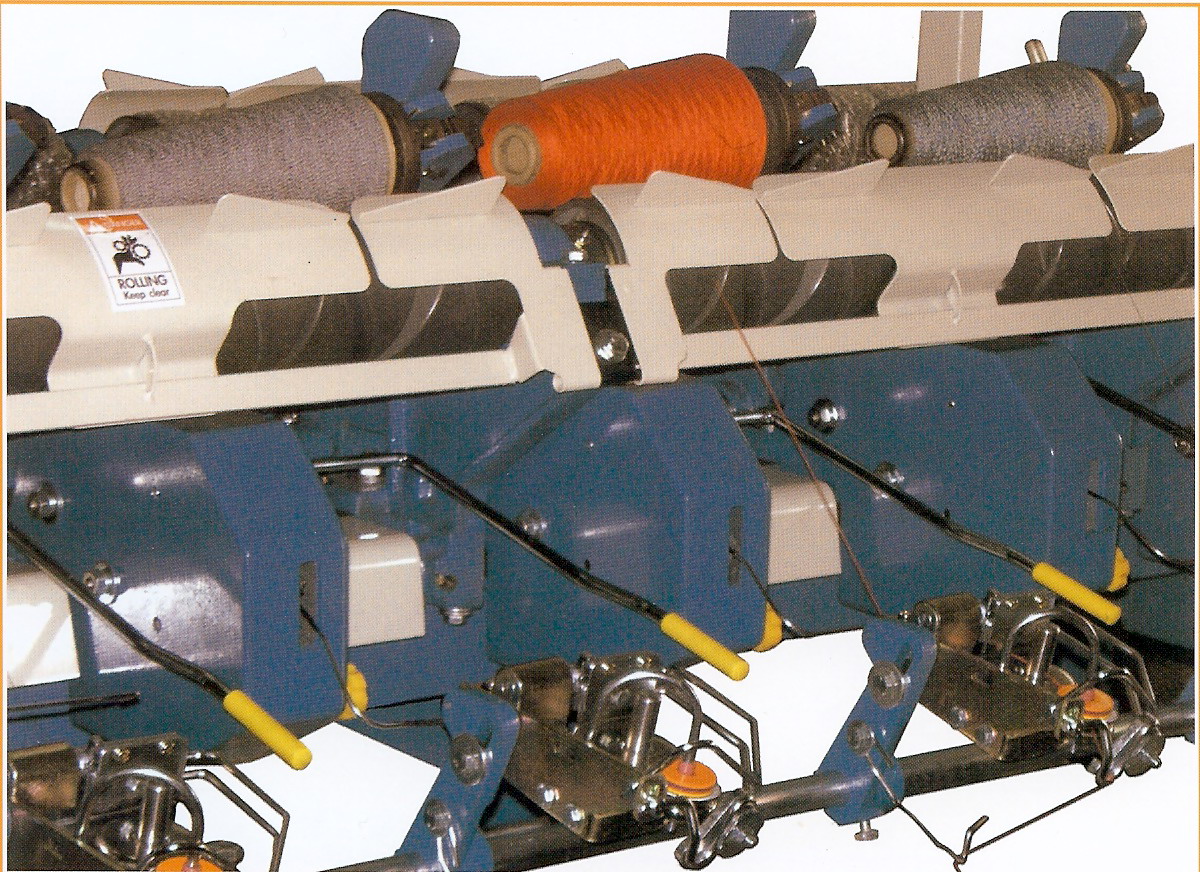

| High Speed
Rotary Traverse Winder Machine Technical Data (HC-601A) |
| Machine layout |
Double Side |
| No. of spindle |
24 |
36 |
48 |
60 |
72 |
84 |
96 |
108 |
120 |
| Length (m/m) |
3730 |
5300 |
6870 |
8840 |
10010 |
11580 |
13150 |
14720 |
16290 |
| Motor KW |
0.75 |
0.75 |
0.75 |
1.5 |
1.5 |
1.5 |
2.2 |
2.2 |
2.2 |
| Take up package diameter & length |
Max. 220 m/m,
length 152 mm |
| Material |
Cotton,
Polyester, TC, TR, RC, (except Nylon) |
| 50 Hz Yarn speed |
Pulley
5":5"=380m/min, pulley 5":6"=450m/min, pulley 5":7"=520m/min |
| Traveling dust
blower |
| Take up angle |
0, 3 30, 4 20, 5
57, 9 15 (degree) |
| Bobbin holder |
Double ends
bobbin holder or single holder |
| Drum measure |
Length 176mm,
diameter 82mm |
| Tension device for wax |
Washer weight
type |
| Optional |
Meter counter,
inverter |

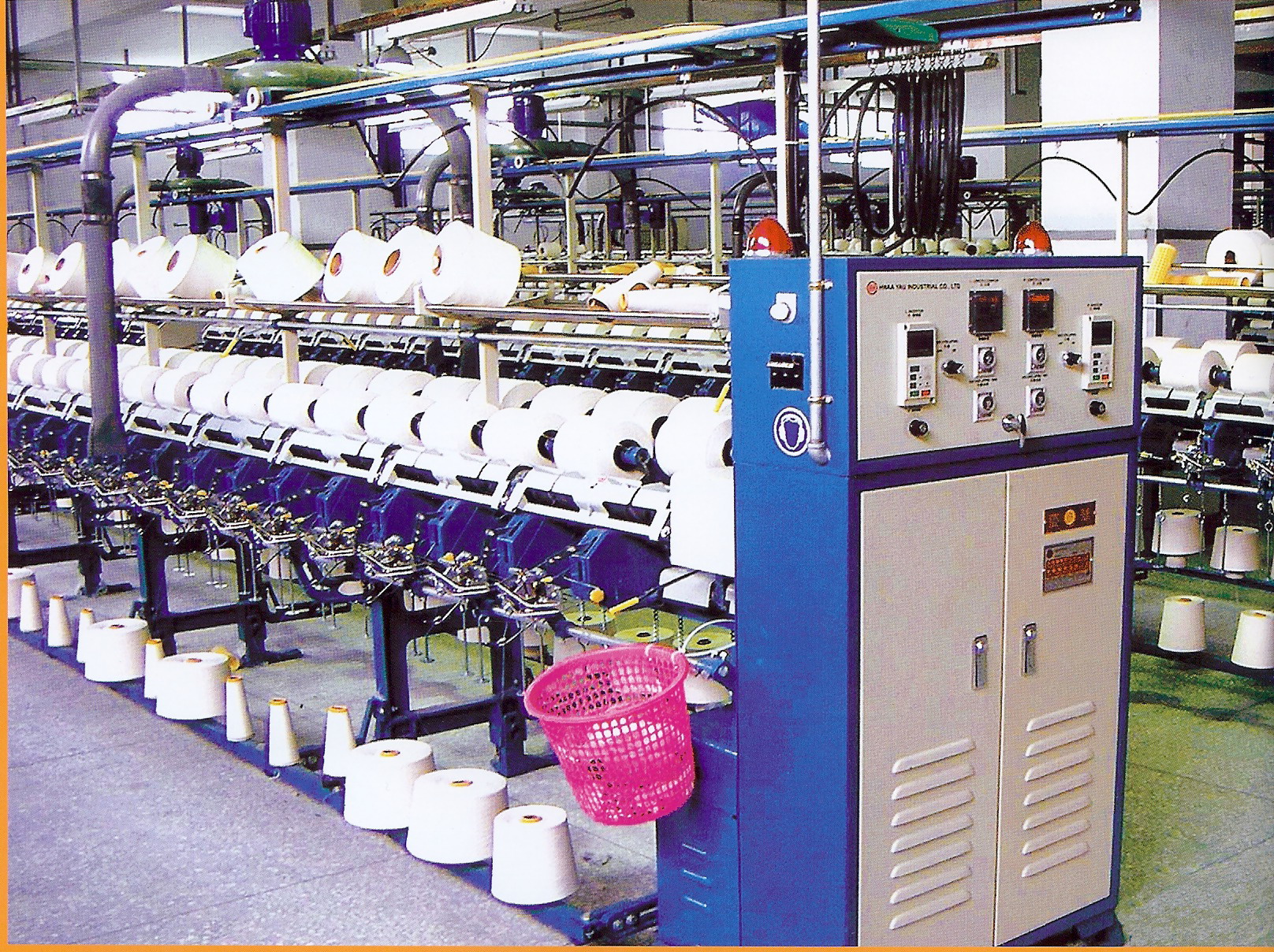

| Soft
Package Winder for Spun Yarn Machine Technical Data
(HC-601B) |
| Machine layout |
Double side |
| No. of spindle |
24 |
36 |
48 |
60 |
| Length (m/m) |
3730 |
5300 |
6870 |
8440 |
| Motor |
0.75kw |
0.75kw |
0.75kw |
1.5kw |
| Take up package diameter &
length |
Max.
220 m/m, length 152 mm |
| Material |
Cotton, Polyester, TC, TR, RC, (except Nylon) |
| 50Hz Yarn speed |
Pulley 5":5"=380m/m, pulley 5":6"=450m/m, pulley
5":7"=520m/m |
| Tension device traverse |
3~4
m/m |
| Drum traverse |
3~4
m/m |
|
Traveling dust blower |
| To &
fro motion device |
|
Ribbon breaker |
| Take up angle |
(degree) 0, 3 30 |
| Bobbin holder |
Double ends bobbin holder |
| Drum measure |
Length 176 mm, diameter 82 mm |
| Tension device |
Washer weight type |
| Optional |
Meter
counter, inverter |
